9020 / 9020T
118″ (28.5mm) Mortise-Rim Combo Cylinder

High-security, 6-pin, 118″ (28.5mm) brass mortise cylinder, convertible for use as a RIM cylinder. Includes rim conversion kit, Adams Rite® and Yale® type cams.

CX5 high-security mortise cylinders are designed to fit hardware that accommodates industry standards for mortise cylinders. Using CX5’s Rim Conversion Kit (included), CX5 Mortise cylinders will retrofit into rim cylinder-based hardware such as exit device trims. Available with a variety of security features, from our original dual-locking security, anti-drilling, anti-picking, to our all-new Triio triple locking patented key technology.

  • (9020T) Patented CX5 Triio key technology and geographically controlled keyways prevent unauthorized duplication of keys.
  • (9020) CX5 key technology and geographically controlled keyways prevent unauthorized duplication of keys.
  • Made from high quality, precision milled, solid brass.
  • Enhanced attack resistance through hardened steel pins that prevent drilling attacks.
  • Multiple locking points, and specially shaped pins prevent bump and picking attacks.
  • Set screw capped top pin chambers for easy pinning.
  • Compatible with door hardware and locks that accept 1532″ (29.4 mm) mortise cylinders.
  • Keys sold separately.
  • 1 Year Limited Warranty against manufacturer defects.
  • Includes CX5-RIMPACK conversion kit for RIM applications.
  • Pre-installed with CX5-CAM1 Adam’s Rite® type cam.
  • Includes CX5-CAM2 Yale® type cam for added flexibility.

Cylinder parts, pins, other cams, and cylinder trim rings available – sold separately.

All dimensions and illustrations are for reference only.

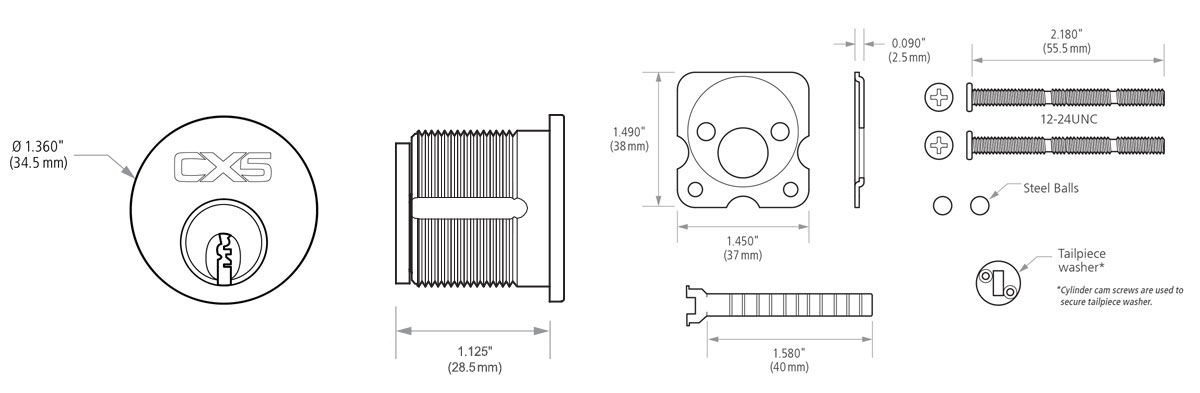

TO ORDER SEPARATELY: CX5-RIM PACK

All dimensions and illustrations are for reference only.

Parts List (9020T Triio model shown)

Item

Description

Part No.

Qty.

1

Plug

1

2

Anti-drill pin¹

3

3

Bottom pins²

CX5-BP [0 to 9]

6

4

Side bar springs³

CX5-SPRSB

4

5

Side bar

CX5-SB5

1

6

Side pin

CX5-SP [1 to 4]

5

7

Triio side bar

CX5-SBT

1

8

Cylinder housing

1

9

Anti-drill pin¹

1

10

Top mushroom pin²

CX5-MPIN

6

11

Top pin spring

CX5-SPTPM

6

12

Set screw cap

CX5-TPSET

6

13

Cam

CX5-CAM1

1

14

Cam screw

CX5-CAMSCREW

2

(1) number of anti-drill pins dependant on cylinder type.
(2) cylinders are 0-bitted by default.
(3) springs are compatible for either side bar.

All dimensions and illustrations are for reference only.

Description

Part Number

Adams Rite® Type Cam

CX5-CAM1

Yale® Type Cam

CX5-CAM2

Yale® Narrow Type Cam

CX5-CAM2A

Russwin® Type Cam

CX5-CAM3

Falcon® Type Cam

CX5-CAM4

Schlage® Type Cam

CX5-CAM7

Sargent® Type Cam

CX5-CAM8

DOREX® DM Type Cam

CX5-CAM10

QTY: 10 per package.

CX5 Mortise Cylinder Trim Rings

Description

Finish

Part Number

5/8" Trim Ring w/ Spring Washer, Brass

Satin Chrome

816A-26D

5/8" Trim Ring w/ Spring Washer, Hardened Steel

Satin Chrome

817A-26D

1/2" Trim Ring w/ Spring Washer, Hardened Steel

Satin Chrome

817C-26D

5/16" Trim Ring w/ Spring Washer, Hardened Steel

Satin Chrome

817D-26D

Other finishes available on special order.

Dimensions

ø A

ø B

ø C

D

E

816A-26D

1.310
(33.5)

1.170
(29.7)

1.730
(43.9)

0.620
(16.0)

0.340
(8.8)

817A-26D

1.370
(35.0)

1.170
(29.5)

1.720
(43.6)

0.630
(16.2)

0.320
(8.25)

817C-26D

1.370
(35.0)

1.170
(29.5)

1.700
(43.1)

0.510
(13.2)

0.200
(5.1)

817D-26D

1.370
(34.9)

1.170
(29.5)

1.700
(43.3)

0.330
(8.5)

0.070
(1.9)

IN (MM)

Product Page

Mortise / Rim Combo Cylinders

Disclaimer
  • All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.

9020

T

26D

B

XXX

Part Number

Technology

Finish²

Keyway

Side Pin Code

9020
9030
9040

9050

(blank): Original¹
T: Triio

26D: Satin
chrome

Z, B, C

Insert your assigned side-pin code³

(1) Original CX5 key technology available, without Triio sidebar.
(2) Other architectural finishes are available, may require minimum order quantity and/or increased lead time.
(3) Contact CX5 Customer Service to verify your assigned side pin code.

Unless specified otherwise, all CX5 cylinders are delivered 0-bitted, assembled complete with side pins and side bars.
CX5 Mortise Cylinders have CX5-CAM1 (Adams Rite®) installed. Other cams sold separately.
